Description

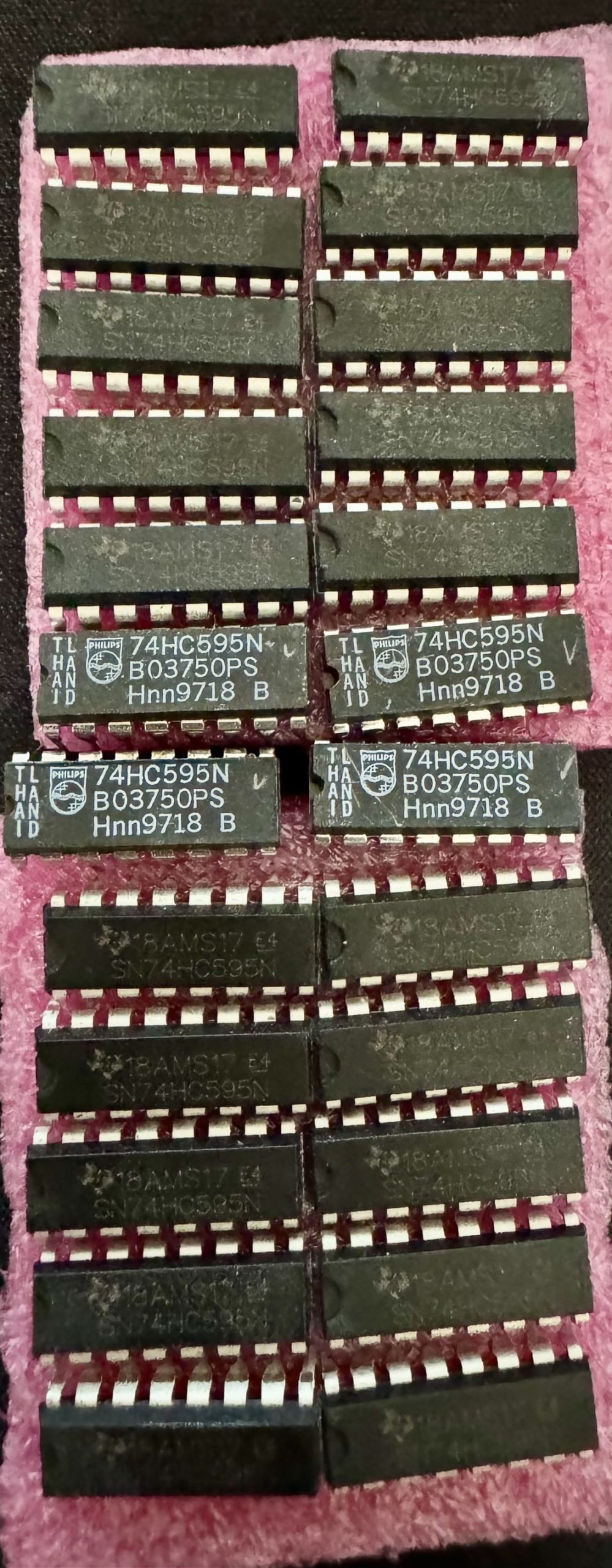

74HC595 8-Bit Serial-Input/Serial or Parallel-Output Shift Register with Latched 3-State Outputs
The 74HC595 consists of an 8−bit shift register and an 8−bit D−type latch with three−state parallel outputs. The shift register accepts serial data and provides a serial output. The shift register also
provides parallel data to the 8−bit latch. The shift register and latch have independent clock inputs. This device also has an asynchronous reset for the shift register.
The HC595A directly interfaces with the SPI serial data port on CMOS MPUs and MCUs.
Features
• Output Drive Capability: 15 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2.0 to 6.0 V
• Low Input Current: 1.0 A
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the Requirements Defined by JEDEC
Standard No. 7 A
• Chip Complexity: 328 FETs or 82 Equivalent Gates
• Improvements over HC595
♦ Improved Propagation Delays
♦ 50% Lower Quiescent Power
♦ Improved Input Noise and Latchup Immunity
• NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free and are RoHS Compliant
